USB Charger USB Charger USB Charger USB Charger USB Charger USB Charger

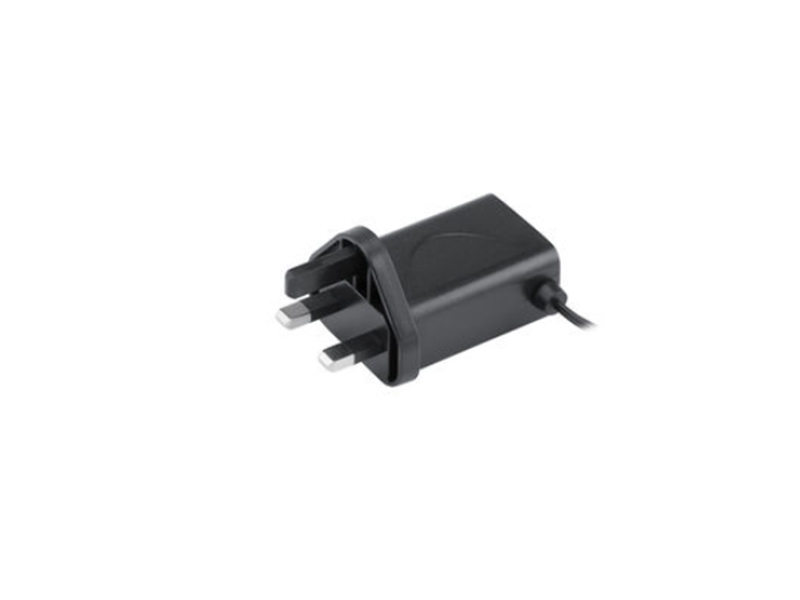

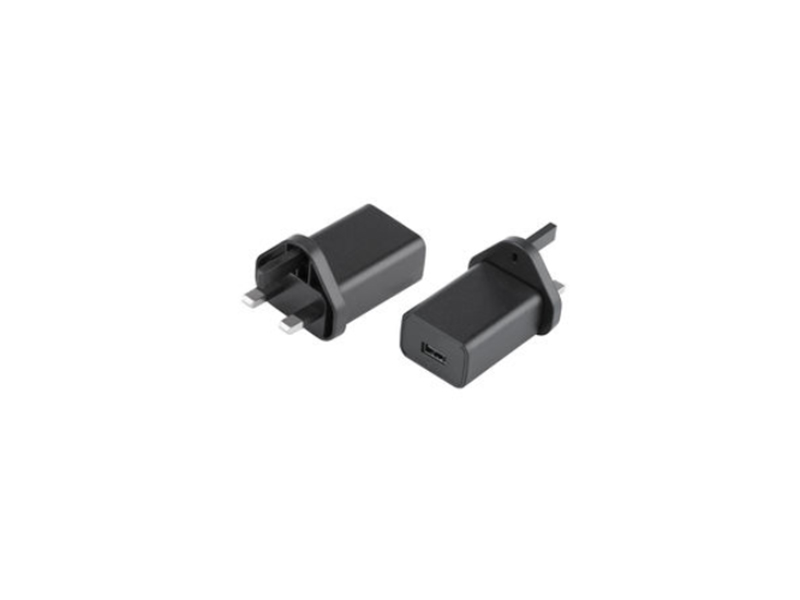

USB Charger

  • Product name:USB Charger Input 100-240VAC, output 5VDC 0.1-1.2A, Power Supply Adapter with Custom Cable
  • Model:Number HP06A
  • US$ 1.7 - 1.9 / Piece
  • Minimum order quantity :1000 Pieces
立即联系
产品描述
Key Specifications/Special Features:
Input Range:100-240VAC
Frequency:50-60 Hz
Input Current:≤0.6A
Inrush Current:≤60A
Efficiency :Meet CEC Level VI (DoE),     CoC Tier 2
Hold Up Time: ≥8.3mS
Turn On Time:≤3S

Environmental
Operating Temperature:0-40℃
Storage Temperature:-20-85℃
Operating Humidity:10%-90%
Storage Humidity:5%-95%

Safety
EN623668, ETL, FCC, PSE, GS, CE, CCC
Electrical Specifications
Max. Output Power (W):5-6W
Output Voltage (vo): 5V
Min. Load (io) :0.1-1.2A
Ripple & Noise:100mV

Features
DoE Compliance
RoHS Compliance
Over Voltage Protective Installation
Short Voltage Protective Installation
Protection Type: Auto Recovery
MTBF: 100,000 hrs

Shipping Information
FOB Port Shenzhen
Lead Time 25–30 days
US HTS Code 8504.40.60 01

Main Export Markets
- Asia
- Eastern Europe
- North America
