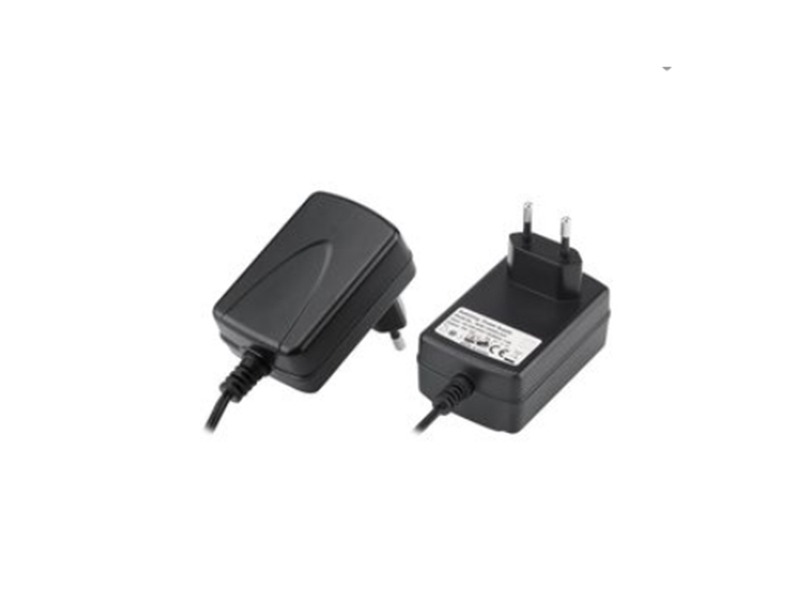

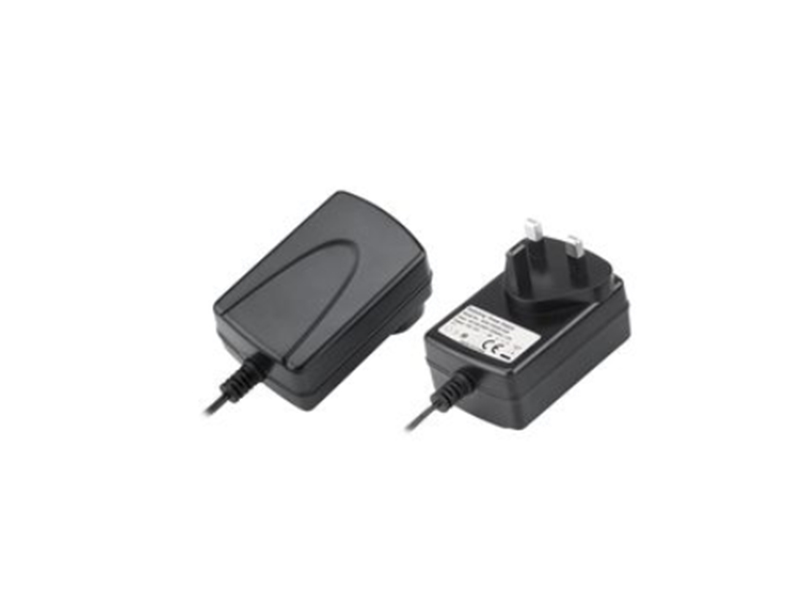

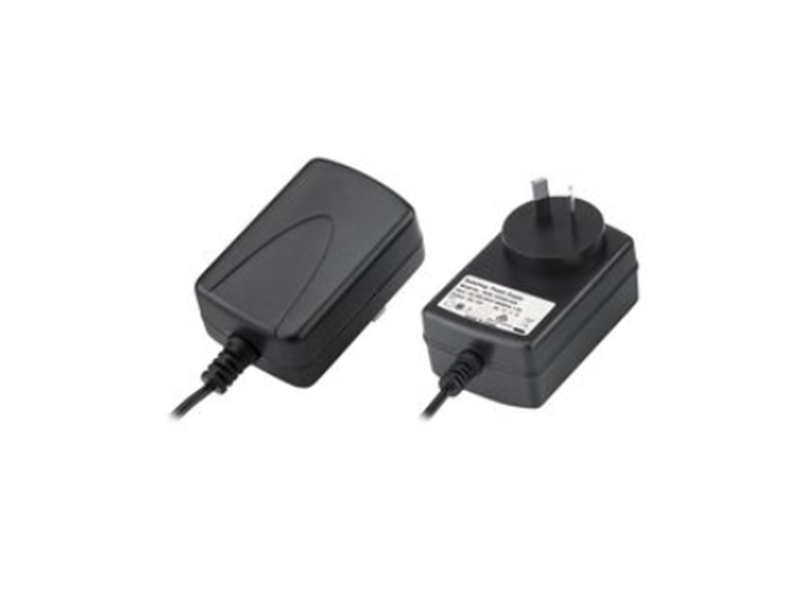

Wall Mount Adapter 48W
- Product name:Wall Mount Adapter 48W, input 100-240VAC, output 12V/24VDC 4A/2A with Custom Cable and DC Port
- Lead Time :25–30 days
- US$ 3.88 - 4.02 / Piece
- Minimum order quantity :1000 Pieces
产品描述
Key Specifications/Special Features:
Input
Input Range ：100-240VAC
Frequency：50-60 Hz
Input Current：≤0.6A
Inrush Current：≤60A
Efficiency ：Meet CEC Level VI (DoE), CoC Tier 2
Hold Up Time：≥8.3mS
Turn On Time：≤3S
Environmental
Operating Temperature：0-40℃
Storage Temperature：-20-85℃
Operating Humidity：10%-90%
Storage Humidity ：5%-95%
Safety
EN61347, ETL, FCC, PSE, GS, CE, CCC
Electrical Specifications
Max. Output Power (W) ：48W
Output Voltage (vo) ：12V/24V
Min. Load (io) ：0.1-1.2A
Ripple & Noise ：100mV
Features
DoE Compliance
RoHS Compliance
Over Voltage Protective Installation
Short Voltage Protective Installation
Protection Type: Auto Recovery
MTBF: 100,000 hrs
Shipping Information
Input
Input Range ：100-240VAC
Frequency：50-60 Hz
Input Current：≤0.6A
Inrush Current：≤60A
Efficiency ：Meet CEC Level VI (DoE), CoC Tier 2
Hold Up Time：≥8.3mS
Turn On Time：≤3S
Environmental
Operating Temperature：0-40℃
Storage Temperature：-20-85℃
Operating Humidity：10%-90%
Storage Humidity ：5%-95%
Safety
EN61347, ETL, FCC, PSE, GS, CE, CCC
Electrical Specifications
Max. Output Power (W) ：48W
Output Voltage (vo) ：12V/24V
Min. Load (io) ：0.1-1.2A
Ripple & Noise ：100mV
Features
DoE Compliance
RoHS Compliance
Over Voltage Protective Installation
Short Voltage Protective Installation
Protection Type: Auto Recovery
MTBF: 100,000 hrs
Shipping Information
